- Medical Electrical Safety Testers

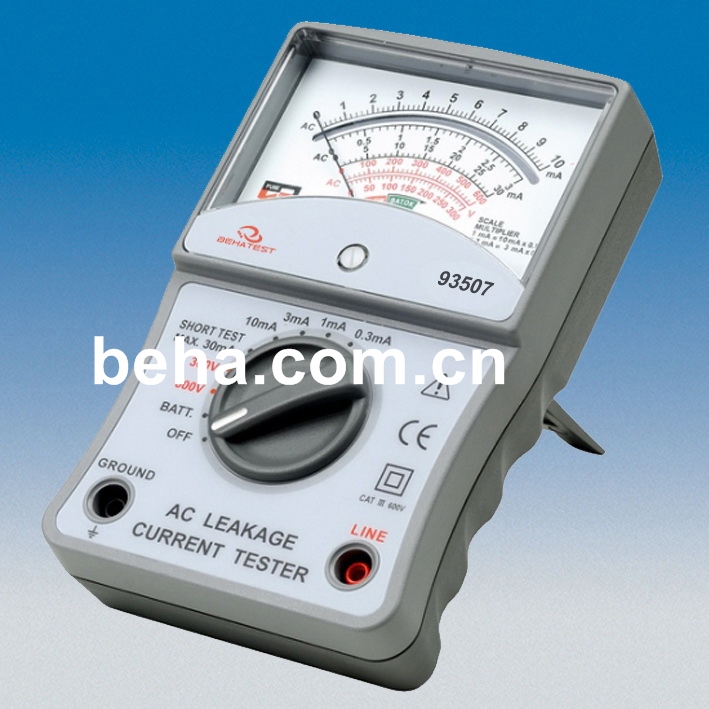

93507 AC Leakage Meter
Model:93507
The 93507 are special purpose AC milliammeter designed to measure hazardous leakage current from electrical appliances and other power line operated equipment.
Details
AC Leakage Meter
Model: 93507
The 93507 are special purpose AC milliammeter designed to measure hazardous leakage current from electrical appliances and other power line operated equipment.
It's used for:
moter operated appliances : Washing machine, electrical pump, lawn mower, refrigerator, electric drill, electric fan, vending machine.
Electrothermal appliances : Toaster, electric stove, electric curling iron, hair dryer.
Electronic appliances : Microwave ranges, TV receiver, welding machine.
Light source appliances : Projector, duplicator and photographic enlarger.
Other Appliances : Portable generator, burglar alarm, medical and dental equipment.
Features:
● High quality movement.
● Small and lightweight, easy to use and storage.
● Mirror scale : makes reading pointer easy.
● With stand : makes reading and measuring easy.
● 200μA full scale value.
● Fuse protected.
● Low battery indication.
● Meets : EN61010-1 CAT, III 600V EN61326-1
Technical Data:
|
AC Leakage Currnet
|
|
|
Measuring Range
|
0.3mA - 1mA - 3mA - 10mA - 30mA
|
|
Accuracy
|
± 2% F.S.
|
|
Input Resistance
|
1.5 KΩ
|
|
AC Voltage
|
|
|
Measuring Range
|
0-150 / 0-300V
|
|
Accuracy
|
± 2% F.S.
|
|
Input Impedance
|
150V 500KΩ / 300V 1MΩ
|
|
General
|
|
|
Power Supply
|
1 x 9 V, IEC 6LR 61
|
|
Low Battery Indication
|
<7V
|
|
Dimensions
|
160 x 100 x 45 mm
|
|
Weight
|
370 g (Battery Included)
|
Scope of Supply:
1 pc AC Leakage Meter 93507
1 pc Battery 9V, IEC 6LR61
2 pc Test Leads (red/black)
1 pc Instruction Manual
