- Phase Detector/ Rotary Field Indicator
90887 Rotary Field Indicator
Model:90887
• Display of all three phases via LCD-Segments
• Display of phase rotation direction via LCD-Segments
• Voltage range 40 … 700 V
• Frequency Range 15 … 400 Hz
Details
Rotary Field Indicator / Phase Sequence Indicator
Model: 90887
The hand-held 90887 Phase Rotation Indicators are applicable in various areas and different mains voltage.
The test instruments are built in compliance with the most recent safety regulations and ensure safe and reliable testing.
• Display of all three phases via LCD-Segments
• Display of phase rotation direction via LCD-Segments
• Including measurement leads with safety Crocodile Clamps
• Voltage range 40 … 700 V
• Frequency Range 15 … 400 Hz
• with built-in fuses
Features:

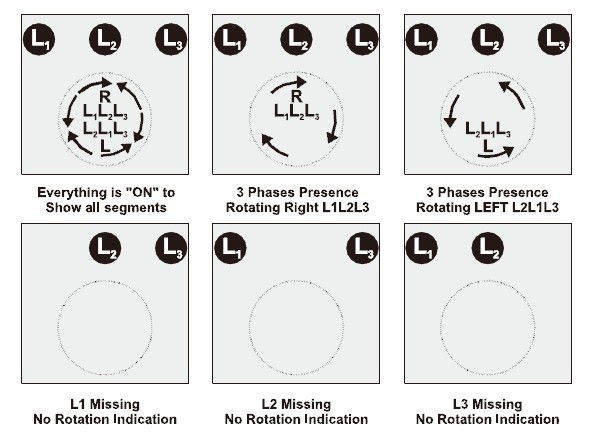

● Indication of the three phases via LCD
● Indication of the phase rotation direction via LCD
● Swift determination of the phase sequence in three-phase networks
● Voltage and frequency range suitable for industrial systems
● LC-display with good visibility in bright areas (i.e. outdoor)
● It doesn't need battery power supply
● Fused.
Technical Data:
|
Display
|
LCD
|
|
Voltage Range
|
40…700 V
|
|
Current Consumption
|
max 3mA (700 V)
|
|
Frequency Range
|
15…400 Hz
|
|
Operation Time
|
continuous
|
|
Measurement category
|
CAT III, 700 V
|
|
Operating temperature
|
1℃ to + 55℃ not in full sun!!!
|
|
Storage Temperature
|
-20℃to + 70℃
|
|
Safety Complying with
|
EN 61010-1 / EN 61010-2-032
|
|
Power Supply
|
from unit under test
|
|
Fuses
|
2 x 0.5A, 6 x 31mm, HBC,600V Fast Blow
|
|
Dimensions
|
72 x 150 x 34 mm
|
|
Weight
|
approx. 160 g
|
Scope of Supply:
1 pc Rotary Field Indicator 90887
3 pc Safety Test Leads With Crocodile Clamps
1 pc Carrying pouch
1 pc Instruction Manual
