9185B Lan Cable Tester

Model:9185B

9185B Lan Cable Tester/ Network cable Tester
• Designed for RJ45/RJ11 modular cables, 10/100 base-T cable and Token Ring cable etc.
• The Lan cable tester can verify cable continuity, open,short circuit and miss-wired.

Details

Download Data Sheet

Lan Cable Tester/ Network cable Tester

Model: 9185B

Introduction

• The 9185B Lan cable tester is a newly designed tool,that can easily test the correct pin configuration of the RJ45/RJ11 modular cables, 10/100 base-T cable and Token Ring cable etc.

• By comparing one transmitting end and the corresponding receiving end, the 9185B Lan cable tester also can test installed cable far away by using the remote receiving unit.

• The 9185B provides the variety for wiring check, such as cable continuity, open status, short status and miss wired.

Features

• Designed for RJ45/RJ11 modular cables, 10/100 base-T cable and Token Ring cable etc.

• The Lan cable tester can verify cable continuity, open,short circuit and miss-wired.

• The remote receiving unit is available for installed cables far away either on the wall plates or on the patch panels.

• Auto and manual scan function.

• Ground wire test.

• Lock status function.

• Buzzer sound warning for wire status.

• Display: LED indication for wire status.

• Meets EN61326-1

Operation

Loopback test

• Plug one end of the testing cable into the Rj45 jack of sourcing end on the master unit and another end of the testing cable into the RJ-45 jack of receiving end on the master unit.

• Press the "

" button, the master unit will start a sequential scanning process if the master unit is in "auto-scanning" mode.

• Press the "

" button, the pin1 LED lamps of the LED indicators will be alight if the master unit is in "manual scanning" mode.

• Note: When the battery power is low, the testing results may not be correct. Please replace with a new battery.

• You can choose a auto-scanning mode or a manual scanning mode by pressing the "AUTO" button or the "MANU" button.

• The Lock function is available in "auto-scanning" mode.

• When the loop is "OPEN", you will hear the sound of the buzzer.

Remote test

• Plug one end of the testing cable into the Rj45 jack of sourcing end on the master unit and another end of the testing cable into the RJ-45 jack of the remote receiving unit, then make tests.

• Read the testing results from the LED indicator on the remote receiving unit.

Specifications:

Display	ELD
Operating Temperature	0~40℃
Power Source	9V x 1 Battery
Dimensions	Master: 132(L) x 55(W) x 39(H)mm Remote receiving unit: 74(L) x 30(W) x 25(H)mm
Weight	Master: 148g Remote receiving unit: 33g

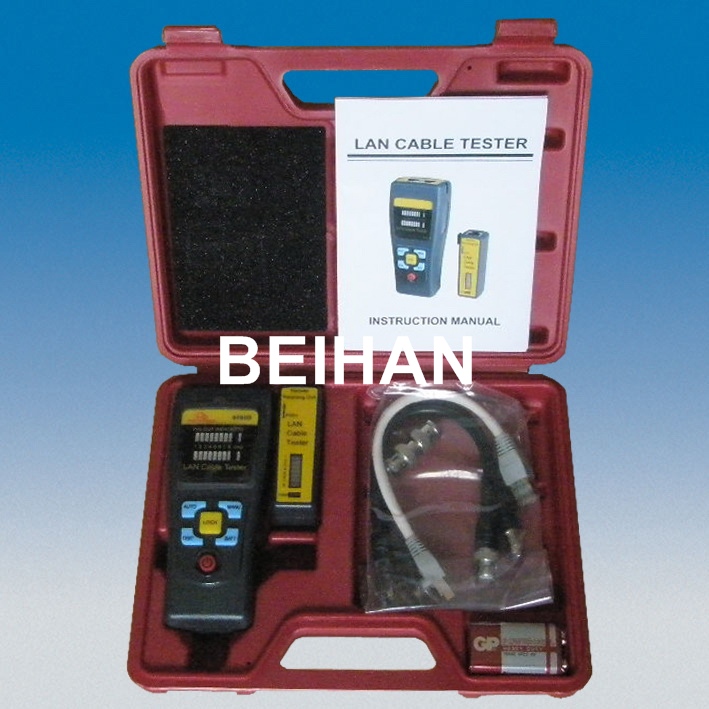

Scope of Supply:

1 pc 9185B

1 pc Carrying pouch,
1 pc batteries 9V

1 pc Self-test Network cable

2 pc BNC Adapter cable

1 pc Instruction Manual

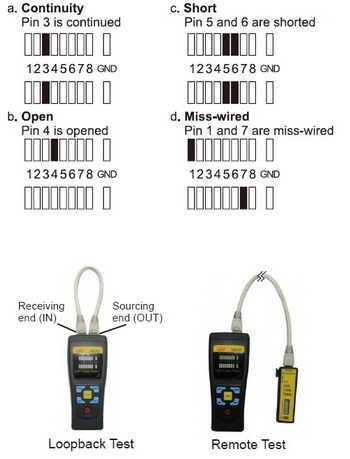

Test result
